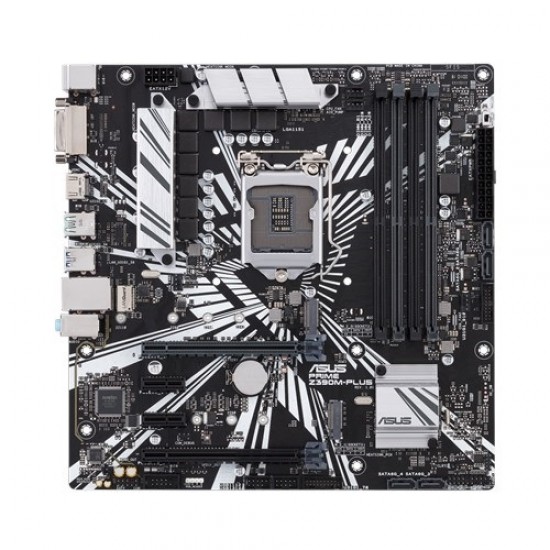

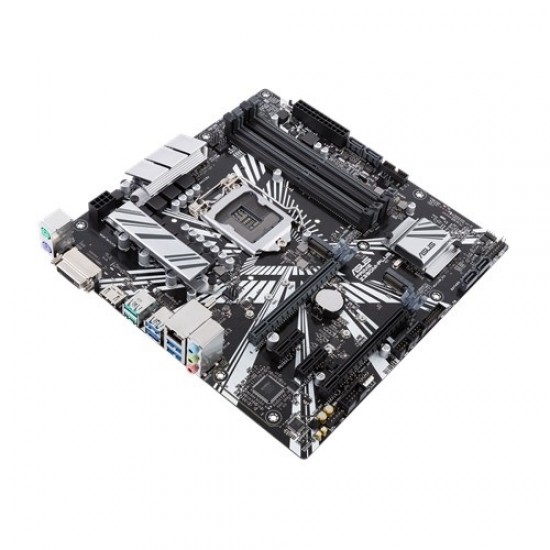

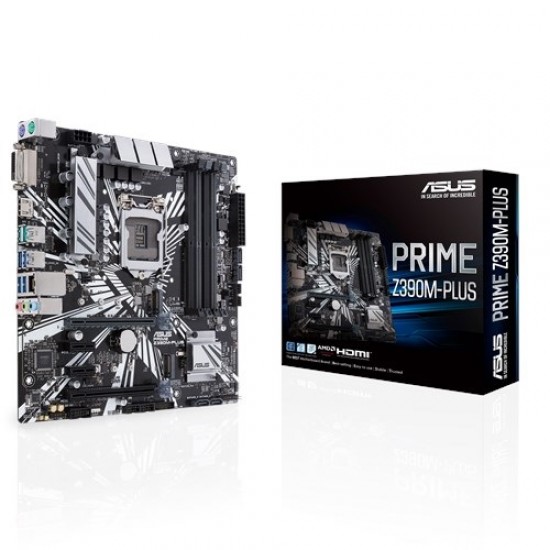

ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard
Out Of Stock
ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard
- Stock: Out Of Stock
- Brand: asus
- Model: PRIME Z390M-PLUS
৳0.00
Ex Tax: ৳0.00
আমাদের অনলাইনে কোন অর্ডার নেওয়া হয় না। আমাদের থেকে পণ্য নিতে কল দিয়ে স্টক সম্পর্কে নিশ্চিত হোন এবং সরাসরি শো-রুম ভিজিট করুন। লেটেস্ট পিসি বিল্ড সম্পর্কে জানতে চোখ রাখুন আমাদের ফেসবুক পেজে। ধন্যবাদ। মোবাইল # 01706355476, 01729080315,01818540233, 01729080311
Specification
| Basic Information | ||
| Supported CPU | Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 | |
| Chipset | Intel® Z390 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1 | |
| M.2 Socket | 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| Memory | ||
| Type | 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory | |
| Slots | Dual Channel Memory Architecture 4 x DIMM | |
| Supported Memory | Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. | |
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ | |

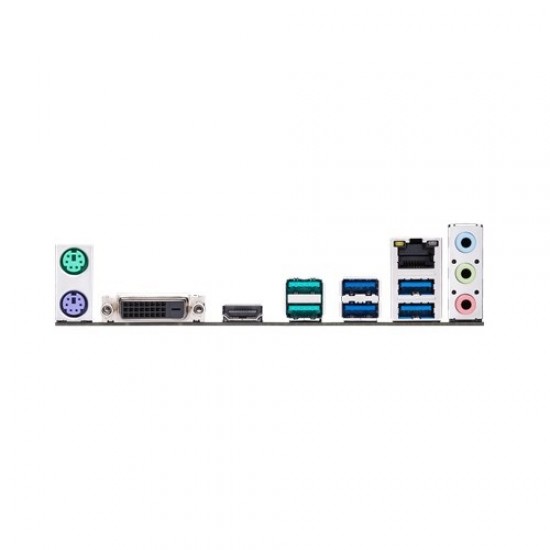

| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| D-Sub (s) | 1 X DVI-D | |
| USB (s) | Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board) | |
| LAN Port (s) | Intel® I219V, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard | |
| Supported Storage | Intel® Z390 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card | |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity | |
| Internal I/O Ports | 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Mono Out header 1 x RGB Header | |
| TPM (Trusted Platform Module ) | N/A | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Limited | |
Description
ASUS PRIME Z390M-PLUS 9th & 8th gen gaming motherboard compatible with Intel (Socket 1151) i3, i5, i7 & i9 processor. This ultrafast dual channel max DDR4 4266 MHz supported maximum 64GB memory and it has the capability of fast dual M.2 Socket 3, SATA 6Gb/s port and SB 3.1 Gen 2 interface. If we consider the graphics, it will support Intel HD graphics having the maximum resolution of 4096 x 2160 @ 30 Hz for HDMI and 1920 x 1200 @ 60 Hz for DVI-D slots. This AMD CrossFireXâ„¢ Technology supported board hasASUS Quiet Thermal Solution and OptiMem II.
Purchase latest 9th gen Asus mainboard for your gaming desktop. Shop online from Green Tech with the best deal and have the delivery all over Bangladesh.
What is the price of ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard in Bangladesh?
The latest price of ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard in Bangladesh is ৳0.00. You can buy the ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard at best price from our website or visit any of our showrooms. Follow us on Facebook For Regular updates & Offer.
